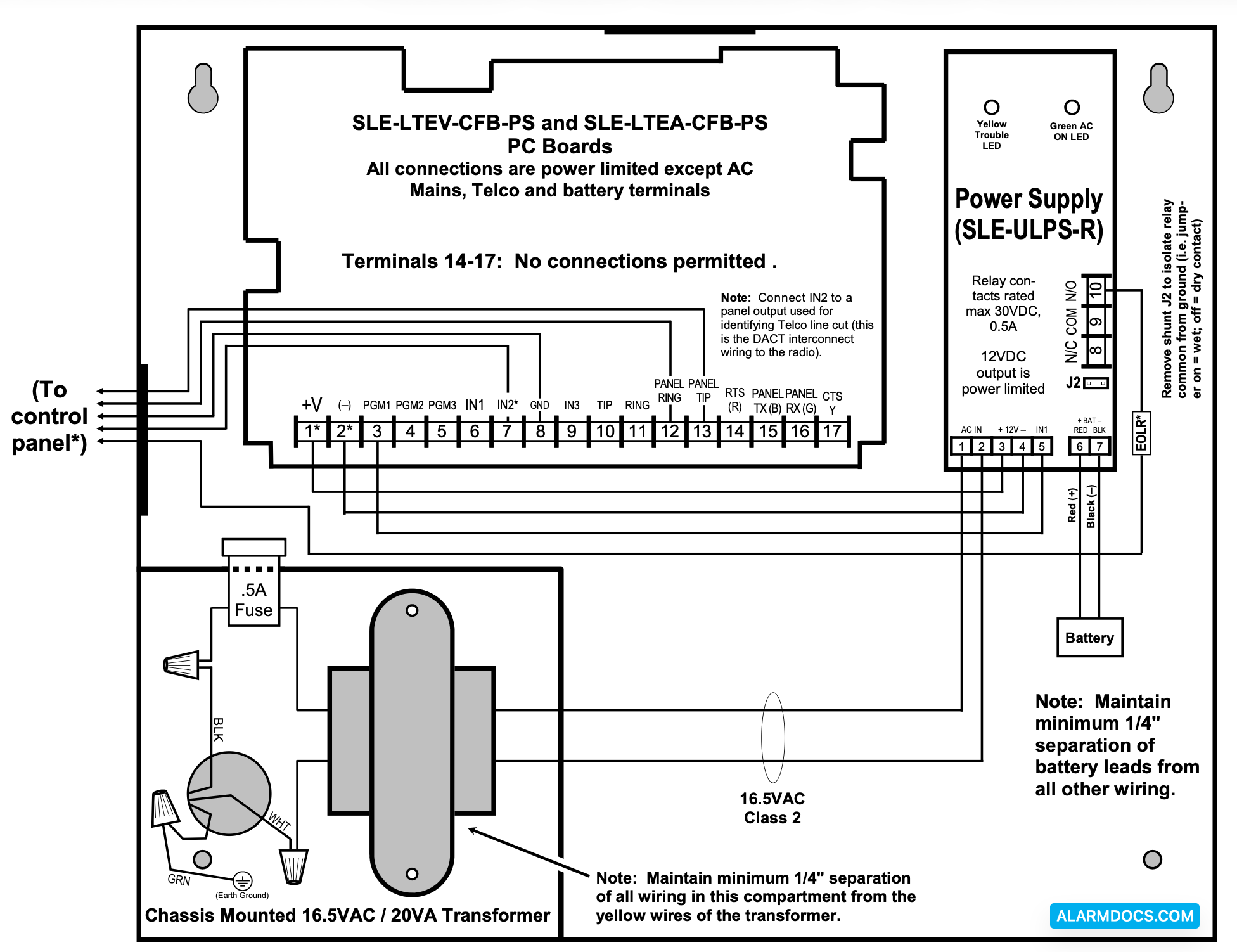

Connect the StarLink radio to the control panel output for Telco Trouble (this is the DACT interconnect wiring to the radio). Remember to program the StarLink communicator module to report this IN2 Telco Trouble and for line cut (EOLR) to the central station (options 1 or 4 on page 17). In addition, always add an EOLR at the control panel Telco Trouble Output (Fire Aux Relay for the GEMC control panels).
- Use EOLR value as specified by the control panel installation instructions.
- IN1 not supervised. IN2 and IN3 are supervised.
- Licensed electrician required to wire the 120VAC connections to the transformer in accordance with N.E.C. and local
- code requirements.
- Route 120VAC only through the transformer compartment knockouts.
- Keep all non-power limited wiring separate from all power-limited wiring inside the housing by 1/4″. In addition, maintain a minimum 1/4″ separation of all primary wiring in the transformer compartment from the yellow secondary wires of the transformer.
- Remove shunt J2 to isolate relay common from ground (i.e. jumper on = wet (circuit common); off = dry contact). When wet, configuration is used; the power should be derived from the alarm control panel.
- StarLink module must be configured to trigger PGM1 on any trouble.
- PGM1 of the StarLink module must be wired to the trouble input (terminal 5) of the power supply.
- The Power Supply Trouble Output must be wired to a control panel zone dedicated to a LTE trouble; see control panel programming instructions and program to Report Alarm / Alarm Restore / Trouble / Trouble Restore.
