Gentex Notification Appliance Using the ELRD-2.2K

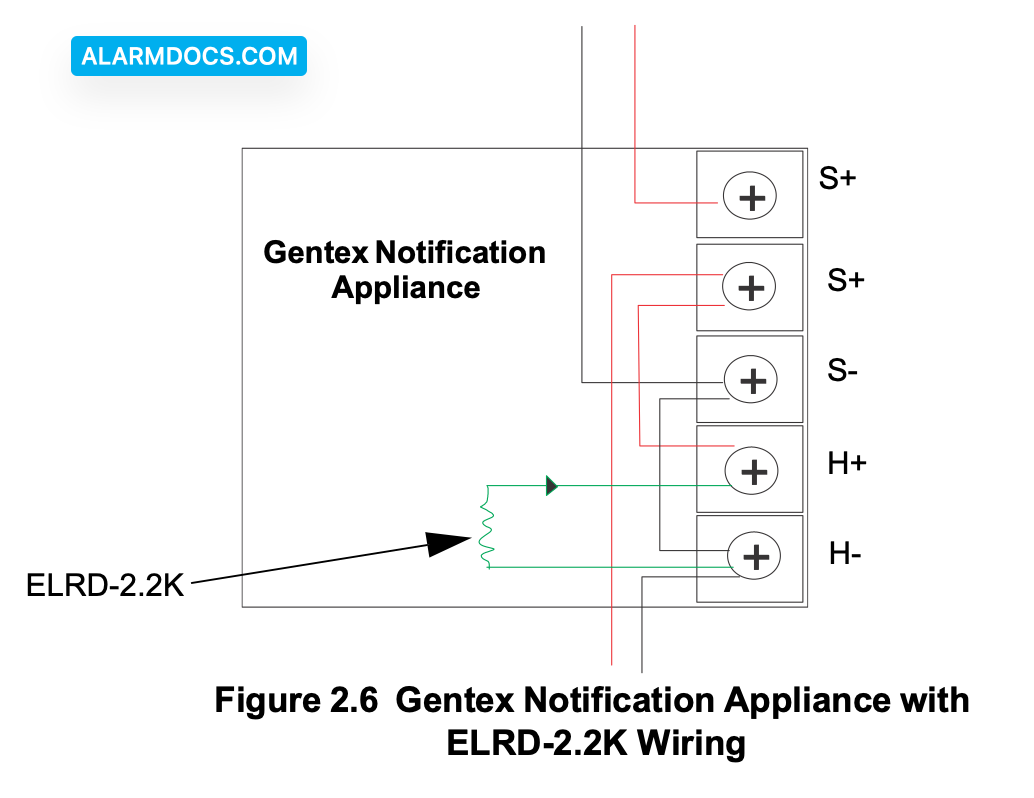

The Gentex Commander III Notification Appliance requires the ELRD-2.2K to be installed across the H+ and H- terminals on the appliance for proper operation on the N16 FACP. Refer to Figure 2.6, “Gentex Notification Appliance with ELRD-2.2K Wiring” for a wiring illustration.
Follow the steps below to install the ELRD-2.2K
- 1. A Gentex Strobe Only Notification Appliance must be installed within twenty feet of the FACP.
- 2. On the Strobe Only Appliance, install the ELRD-2.2K resistor across the H+ and H- terminals.
- 3. Wire Strobe Only to the next Notification Appliance as normal.
