| LED Indicator | STATUS |
|---|---|
| AC (green) | AC power available. |
| ACTIVE (green) | Cyclical flashing – normal communications. Repetition of 3 flashes – loss of communications. |
| LOW BATT (yellow) | Missing or low battery. |
| TROUBLE (yellow) | One or more trouble conditions exist, such as; overload, output supervision, ground fault, or charger failure. |
Notes
- If AC power is lost and the battery voltage falls below 10v, the PowerBoost1 output voltage will be turned off. The output power is turned back on when AC power is restored.

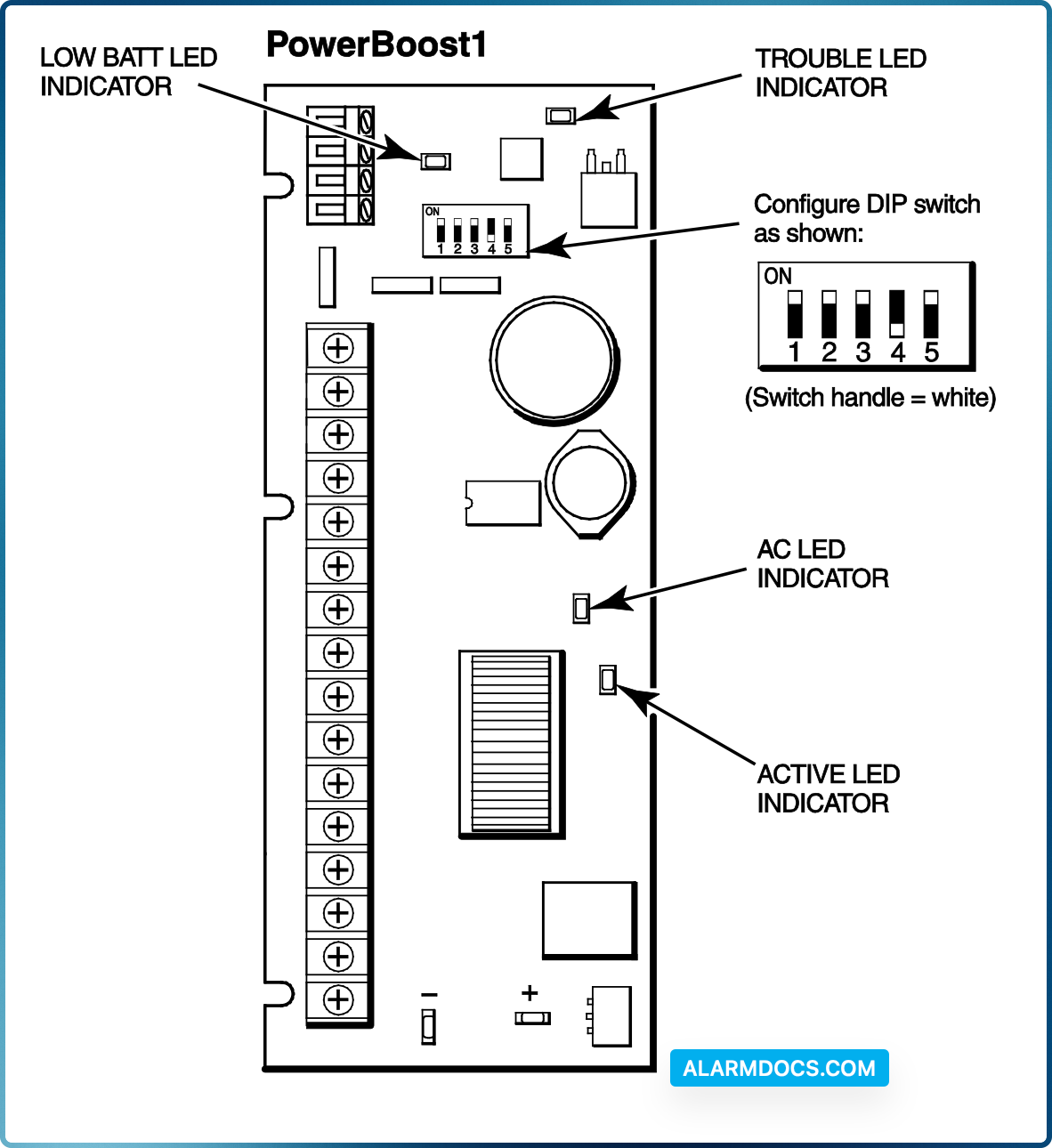

- You must use the DIP switch settings shown below.
