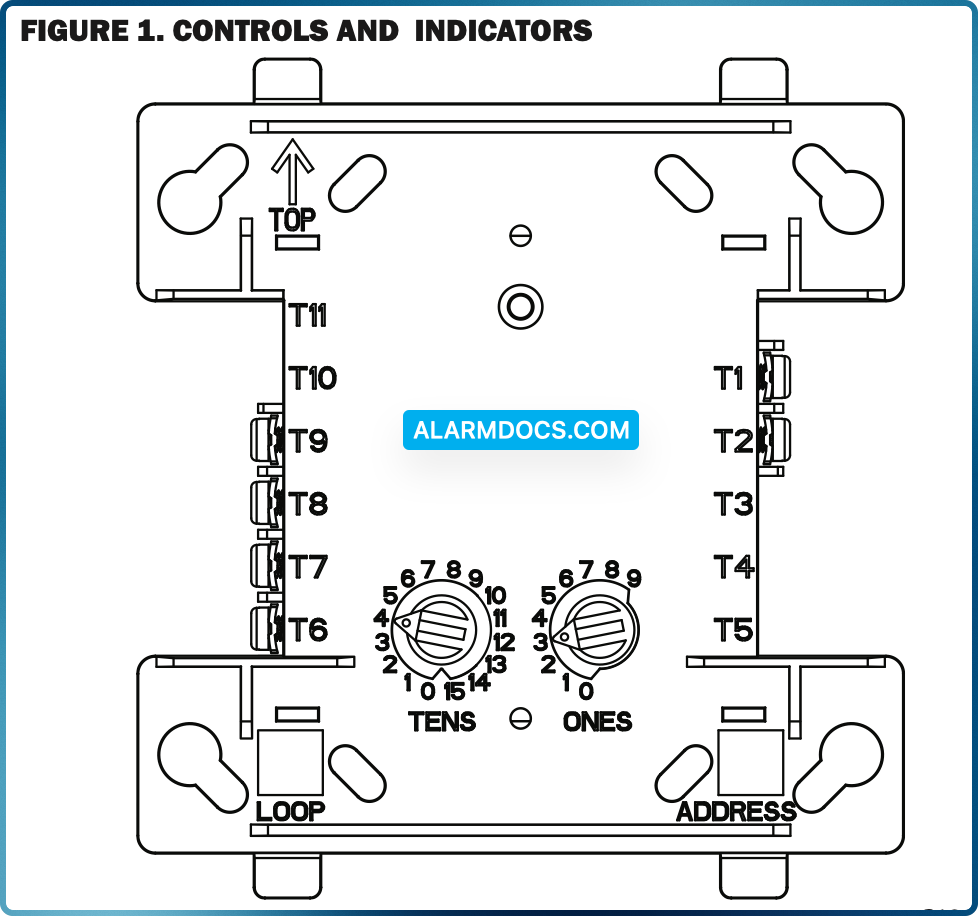

The FMM-1 Monitor Module is intended for use in intelligent, two-wire sys- tems, where the individual address of each module is selected using the built- in rotary switches. It provides either a 2-wire or 4-wire fault tolerant initiating device circuit (IDC) for normally open contact fire alarm and supervisory de- vices, or either normally open or normally closed security devices. The mod- ule has a panel controlled LED indicator. The FMM-1 can be used to replace an MMX-1 module in existing systems. FMM-1 is also UL Listed as a com- mercial proprietary burglar alarm accessory and a commercial central station burglar alarm accessory.
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to a compatible NOTIFIER system control panel (list available from NOTIFIER).
MOUNTING
The FMM-1 mounts directly to 4-inch square electrical boxes. (See Figure 2). The box must have a minimum depth of 21 /8 inches (54 mm). Surface mounted electrical boxes (SMB500-WH) are available from NOTIFIER.

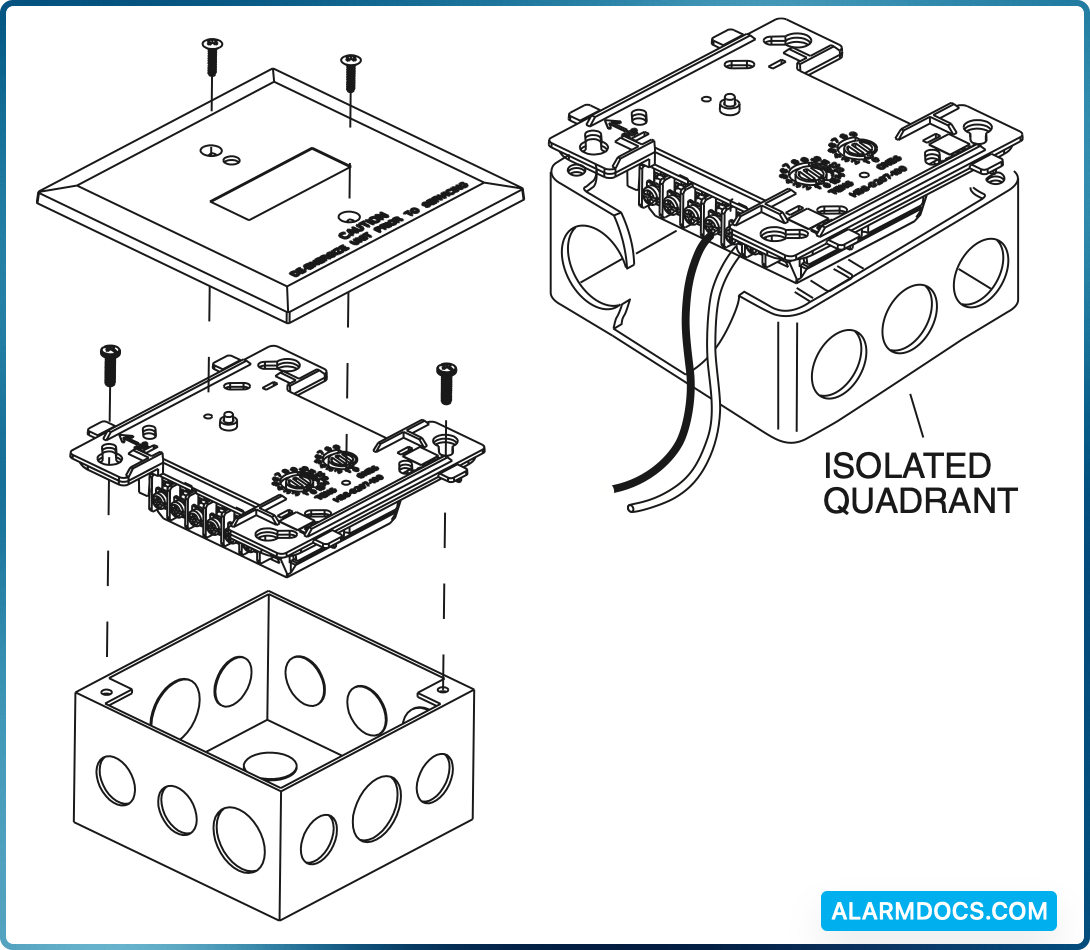

FIGURE 2. MODULE MOUNTING
NOTE: For UL Listed security installations, the FMM-1 must be mounted within the control panel enclosure.
WIRING
NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.
- 1. Install module wiring in accordance with the job drawings and appropri- ate wiring diagrams.
- 2. Set the address on the module per job drawings.
- 3. Secure module to electrical box (supplied by installer). See Figure 2.
NOTE: All references to power limited represent “Power Limited (Class 2)”.
NOTE: Dispose electronic waste following national and/or local regulations.

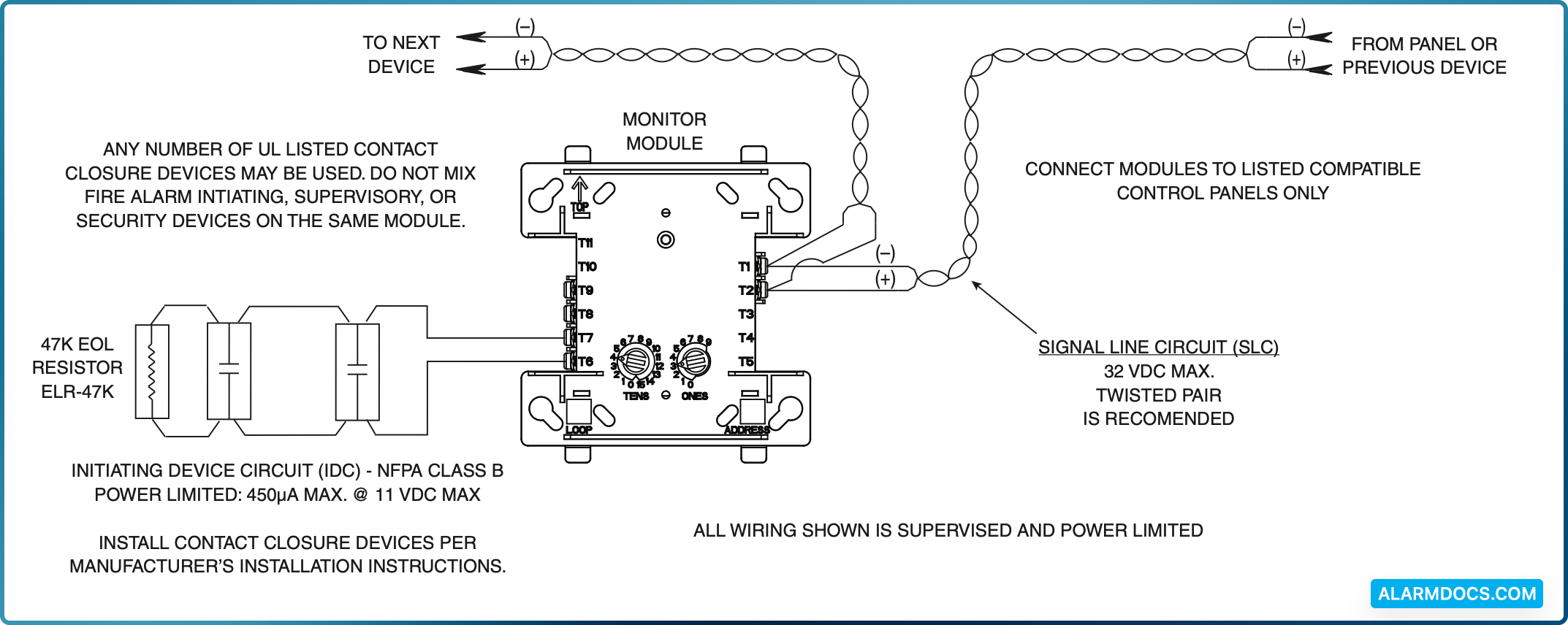

FIGURE 3. TYPICAL 2-WIRE INITIATING CIRCUIT CONFIGURATION, NFPA CLASS D OR SECURITY SYSTEMS
NOTE: For UL Listed security installations, the FMM-1 must be mounted within the control panel enclosure.

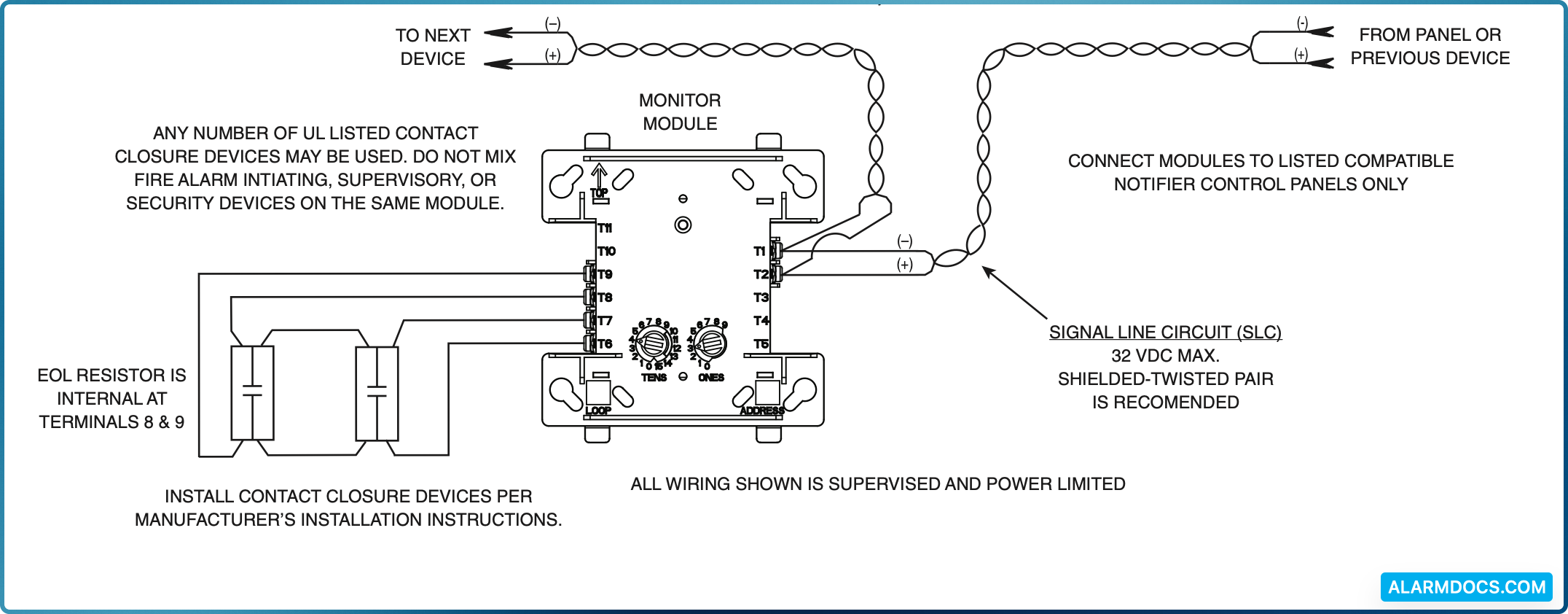

FIGURE 4. TYPICAL 4-WIRE FAULT TOLERANT INITIATING CIRCUIT CONFIGURATION, NFPA CLASS A
UL 2610 REQUIREMENTS
This product is intended to be installed in accordance with the following:
- NFPA 70 – National Electric Code
- UL 681 – Standard for Installation and Classifcation of Burglar and Holdup Alarm Systems
- UL827 – Standard for Central Station Alarm Services
